Tack welding is crucial in many welding projects, providing temporary stability and alignment before a final weld is applied. These small, strategic welds along the joint minimize the risk of warping and keep parts in place during the welding process. Tack-weld is especially valuable for large and complex projects, as it allows welders to inspect, test, and make adjustments before proceeding with a full weld.
Knowing how to tack weld properly can improve the quality and safety of your work. Likewise, mastering this skill is an important step in becoming a proficient welder. In this guide, we’ll go over what tack welding is, when and why to use it, and how to perform it correctly. You will also learn the best ways to test the quality of your tack welds.
What is a Tack Weld?

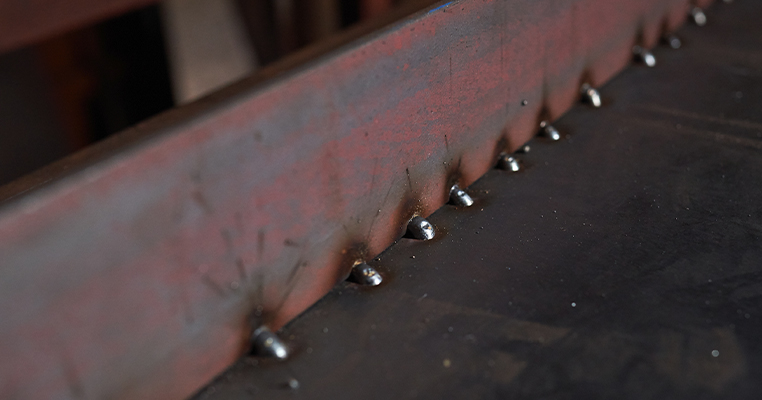

This is a small, strategic, temporary weld that secures metal pieces in place before the final weld is completed. These welds are usually applied at spaced intervals along the joint to maintain the alignment and stability of the workpieces. Though they don’t carry the full load like a final weld, tack welds are strong enough to hold parts steady under moderate pressure and temperature changes. This is essential when working with large or heat-sensitive materials.
Tack welds are often used as a test method to ensure the fit-up and positioning of the components. The provide a chance to check for potential issues and make adjustments before committing to a full weld. By helping prevent misalignment, these welds reduce the need for rework, saving time and resources in welding projects.
When to Use Tack Weld
Tack welding is particularly beneficial in specific scenarios. Here’s a deeper look into when to use tack welds and why they’re essential in these cases:
Large or Complex Assemblies
In large projects or complex assemblies, tack welds provide temporary stability to hold the structure together until the final welds are applied. For instance, when welding metal frames, beams, or automotive bodies, it’s essential to keep parts aligned and prevent any movement during the welding process. They act as stabilizers, allowing you to build and assemble large structures without needing to constantly reposition or secure parts.
Using tack welds in these cases allows welders to work progressively on different sections of the assembly, providing better control over the final outcome. The stability ensures the structural integrity of the weld and makes the welding process more manageable for large or heavy assemblies.
Preventing Warping and Distortion
Metal often expands when heated, which can lead to warping or distortion in the final weld. Tack welds help control heat distribution by securing the metal at intervals, reducing the likelihood of warping. By adding small tack welds along the joint, welders can control the movement that occurs as the metal heats and cools.
Tack welds are especially useful in thin metal sheets or delicate materials to prevent bending or sagging. They help distribute the stress and stabilize the material, allowing the welder to complete the job with minimal distortion. This step is critical in precision metalwork, where even slight shifts in alignment can affect the project’s accuracy.
Holding Parts for Multiple Passes
When projects require multiple weld passes, tack welds help keep the initial layer in place to support the following passes. Multi-pass welding is often used for thick metals or in high-strength applications where a single pass won’t provide enough depth or strength. Tack welds allow each pass to be applied consistently and in a stable manner.
Without these welds, the base materials may shift under the heat of subsequent passes, leading to an uneven or unstable joint. Tack welding prevents this by securing the initial layers, ensuring each pass builds on a firm foundation.
Temporary Holding for Quality Checks and Adjustments
These welds also allow welders to inspect and adjust components before proceeding with a full weld. Once tack welded, the structure can be visually inspected or measured to confirm alignment. If any adjustments are needed, tack welds can be ground away easily, allowing parts to be re-positioned without significant material loss or damage.
Tack welding is especially valuable in fabrication work, where precision is critical. The welds enable a trial-and-error approach to let welders make adjustments until the alignment and fit are perfect. This ultimately leads to higher-quality welds in the final project.
How Do You Tack Weld Properly?
You need to use proper technique to ensure strong tack welds that provide stability without causing distortion. Here’s a step-by-step guide on how to tack-weld effectively:
Step 1: Prepare the Workpiece
Begin by thoroughly cleaning the surfaces where you’ll be applying the tack welds. Any dirt, oil, rust, or paint on the metal can weaken the weld and compromise joint strength. Use a wire brush, grinder, or sandpaper to get a clean surface. Proper preparation leads to a stronger bond and reduces the risk of weak tack welds.
Step 2: Set Up the Correct Welding Parameters
Set your welding machine parameters—such as current, voltage, and wire speed—according to the metal’s type and thickness. A lower heat input is usually best for tack welds to prevent burn-through or warping. Tack welding on thin metals may require even lower amperage to avoid damaging the material. Refer to the welding machine’s settings guide for optimal parameters.
Step 3: Align the Workpieces Accurately
Securely align the workpieces using clamps, magnets, or jigs. Check the alignment with measuring tools or visual inspection. Misalignment in tack welds can lead to an inaccurate final weld, so take the time to confirm proper alignment before proceeding.
Step 4: Apply Tack Welds at Strategic Points
Apply small, evenly-spaced tack welds along the joint, starting with the ends. Add tack welds at intervals of about 2-4 inches (5-10 cm) for long joints to prevent movement. These intervals depend on the metal’s thickness and the project’s requirements. Tack welds should be just large enough to hold the joint without adding excessive heat.
Step 5: Use Proper Welding Technique
Maintain a consistent angle with the electrode or welding torch, keeping the tack welds as small as possible. Avoid lingering to prevent heat concentration. Quick, controlled welds will create effective tack points without causing distortion or weakening the metal.
Step 6: Re-check Alignment and Stability
Inspect the workpiece’s alignment after placing tack welds. If any areas need adjusting, grind away the tack welds and re-apply them. Ensuring stability and alignment before final welding will improve the project’s overall quality.
How to Test if Tack Welds Are Qualified
Testing tack welds is essential to confirm that they are strong and stable enough to hold parts in place during the final welding process. Since these welds provide the foundation for accurate alignment and prevent shifting, ensuring their quality is crucial to avoid structural issues or alignment errors later on. To confirm that your tack welds are effective and will hold during the final weld, perform these tests:
Visual Inspection

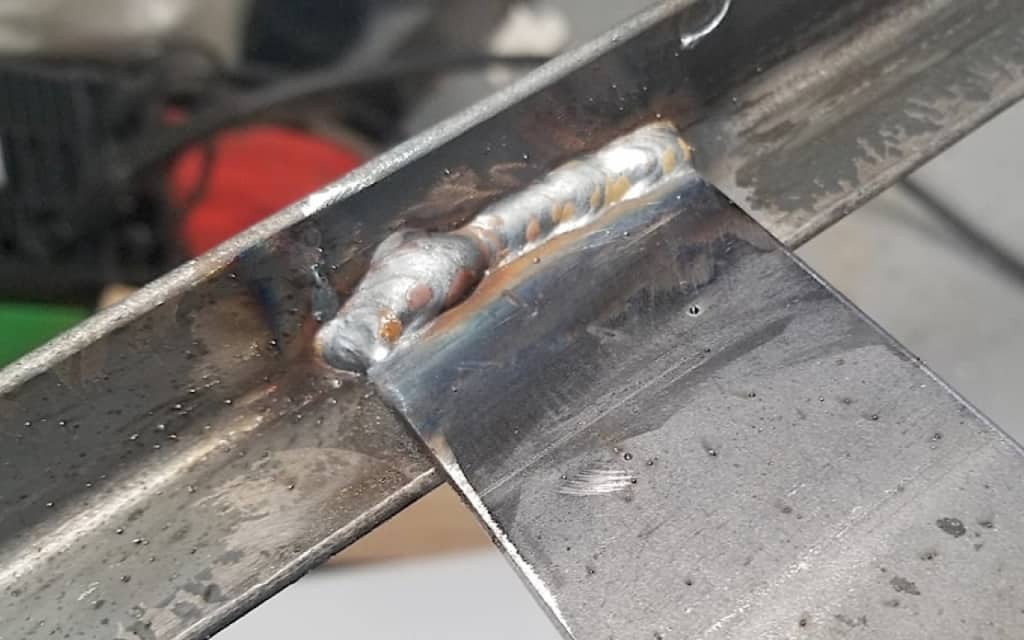

Look for a uniform, even appearance on each tack weld symbol. Tack welds should be smooth and free of cracks, porosity, or excessive spatter. This indicates strong adhesion. Visual inspection reveals common flaws that can weaken tack welds, such as cold starts, incomplete fusion, or contamination.
Tap Test
Lightly tap each tack weld with a hammer to test its stability. Proper tack welds will withstand gentle taps without breaking or loosening. This test confirms that the weld has bonded well to the metal surface. If the tack weld breaks, it may indicate insufficient heat or poor surface preparation.
Tension or Flex Test
Apply slight tension or flex to the joint to check if the tack welds maintain alignment. Qualified tack welds will keep parts secure under light stress. If the tack weld breaks or the parts shift, consider reinforcing the welds or adjusting parameters.
Non-Destructive Testing (NDT)
For critical applications, non-destructive testing methods, such as ultrasonic or dye penetrant testing, can detect internal defects without damaging the workpiece.
- Ultrasonic Testing (UT): This method uses high-frequency sound waves to detect internal flaws within the weld. A probe emits sound waves into the weld area, and any reflected waves signal the presence of cracks or voids. Ultrasonic testing is highly effective for identifying hidden defects and is commonly used for critical applications where internal integrity is essential.
- Dye Penetrant Testing (DPT): This technique involves applying a dye to the surface of the tack weld. The excess dye is removed after allowing the dye to seep into any surface cracks or pores, and a developer is applied. Any remaining dye that seeps back to the surface indicates flaws in the weld. Dye penetrant testing can reveal surface-level imperfections to ensure the weld is secure and free from surface defects.
NDT is typically used for final welds but can confirm tack weld quality in high-stakes projects where structural integrity is crucial.
Conclusion
Tack welding is a foundational skill that provides welders with the stability and precision needed to complete complex welding projects. The proper tack welding techniques will help you achieve strong and reliable joints that maintain alignment and minimize warping. Testing tack welds ensure their integrity to enhance the quality of the completed weld. Mastering tack welding will improve your welding skills and lead to more accurate and durable welds across various applications.
